Product Description
Multipoint replacement gears for PINNACLE SERIES ONLY hinged patio doors 2000 to present. Please view all illustrations and read ALL information as these gears are made to order and non return able. This style gear has a latch and dead bolt along with a tongue that comes out of edge of door above and below the latch and dead bolt. There are three styles of gears. THESE GEARS ARE REVERSABLE, MEANING ON GEAR FOR LEFT OR RIGHT HAND DOOR. JUST TAKE PLIERS AND PULL THE 2 TAPPERD LATCHES STRAIGHT OUT AND SPIN 180 DEGREES . A SPRING HOLDS LATCHES FROM FALLING OUT Please allow 4-5 weeks for manufacturing
NOTE: a multi point gear not only has a latch and dead bolt but it also has other forms of locking devises on edge of door panel

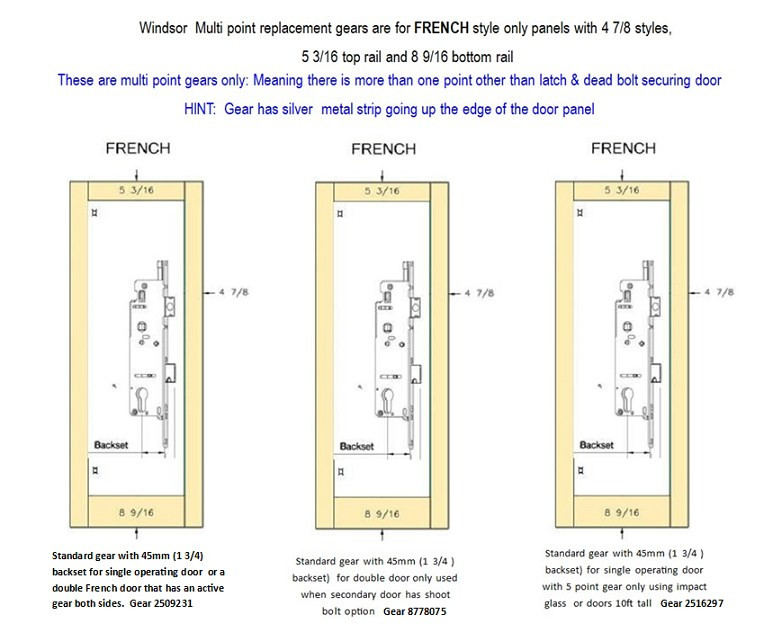

Gear Option #1 2509231 hp
It is for a single paneled door only
Door has a 1 3/4 back set
Door has a tongue high and a tongue low that comes out on edge of door panel and locks into a strike plate
Has 4 7/8'' styles
Has 8 9/16 bottom rail
Has 5 3/16 top rail
Gear Option #2 8778075 hp
It is for a double French door only AND the secondary door has a shoot bolt coming out of top and bottom of the secondary panel
Door has a 1 3/4 back set
Door has a tongue high and a tongue low that comes out on edge of door panel and locks into a strike plate
Has 4 7/8'' styles
Has 8 9/16 bottom rail
Has 5 3/16 top rail
Gear Option #3 2516297 hp
It is for a single paneled door only That has a 5-point gear which is only used when safety impact glass is used. OR on a 10ft tall door
Door has a 1 3/4 back set
Door has a tongue high and a tongue low that comes out on edge of door panel and locks into a strike plate
Has 4 7/8'' styles
Has 8 9/16 bottom rail
Has 5 3/16 top rail
