Product Description
Note: while we can still obtain this gear for you it is a discontinued item and has a 6 to12 week lead time
This inline gear replaces the 3-point sliding door gear. Note illustration showing 3 different locking points on the sliding gear. This gear fits more than one application so the top may need to be field trimmed. You will choose you’re back set above. Note this is a special order with no returns. 6 to 12 weeks for shipping. Door jamb strike plate sold separately. NOTE: some locks may say ( U2/ KOP or 11Z/ KOP ) Note depending on your door the bottom may have to be field trimmed to fit. You will see score lines on bottom there gear can be trimmed (cut).
This Hoppe gear replaces Fuhr Multi-Point Lock -
Face Plate Measurements: 5/8 Wide x 61-3/4 inches long.

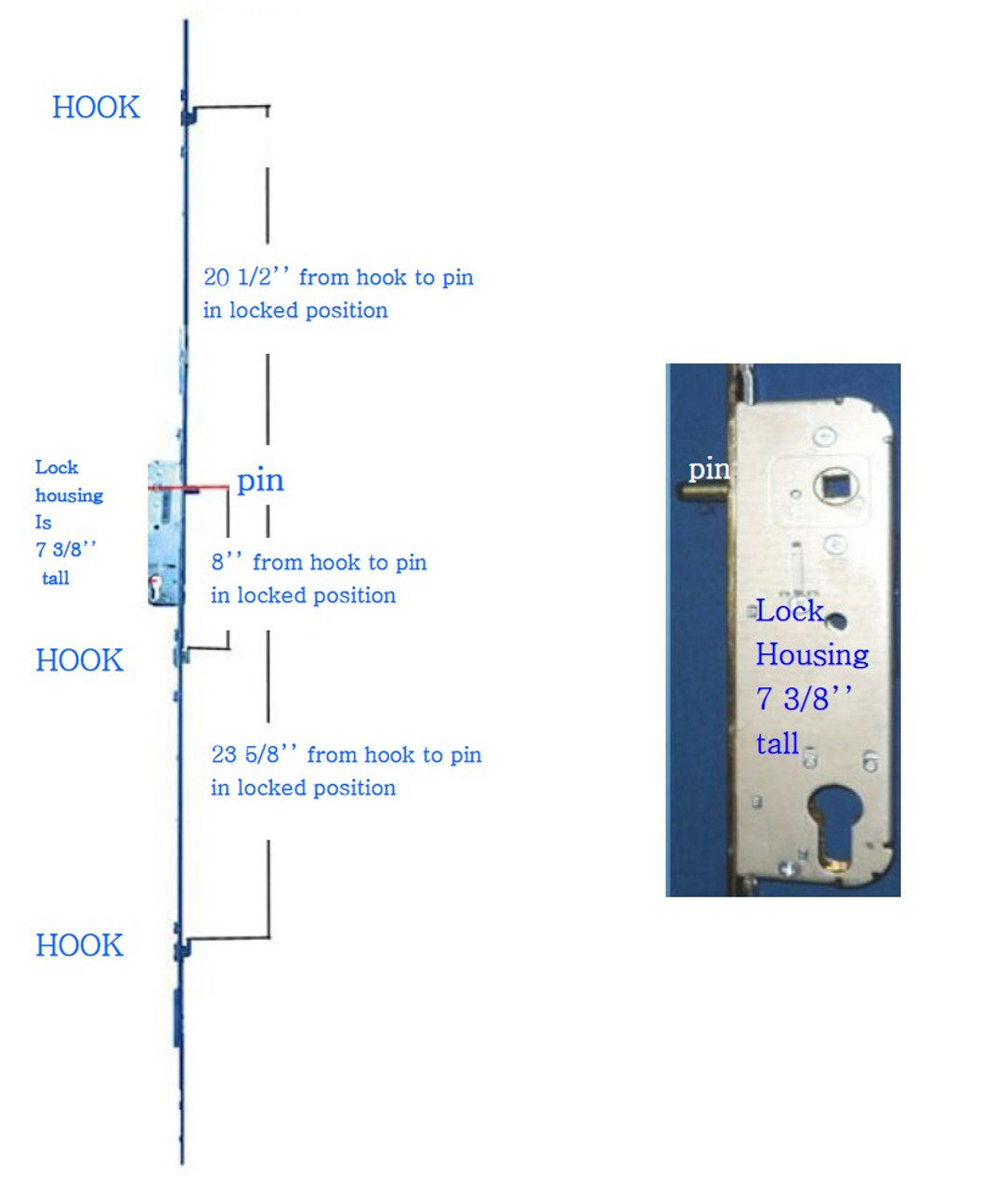

Hooks: There are three hooks, two below the handle, one above.
Bottom Hooks Located: 8-1/2 & 24-1/4 inches from the tip of the hook to the center of the handle.
Top Hook: 20 inches from the tip of hook to center of handle, When door is in unlocked position.
Lock Body Measurements:

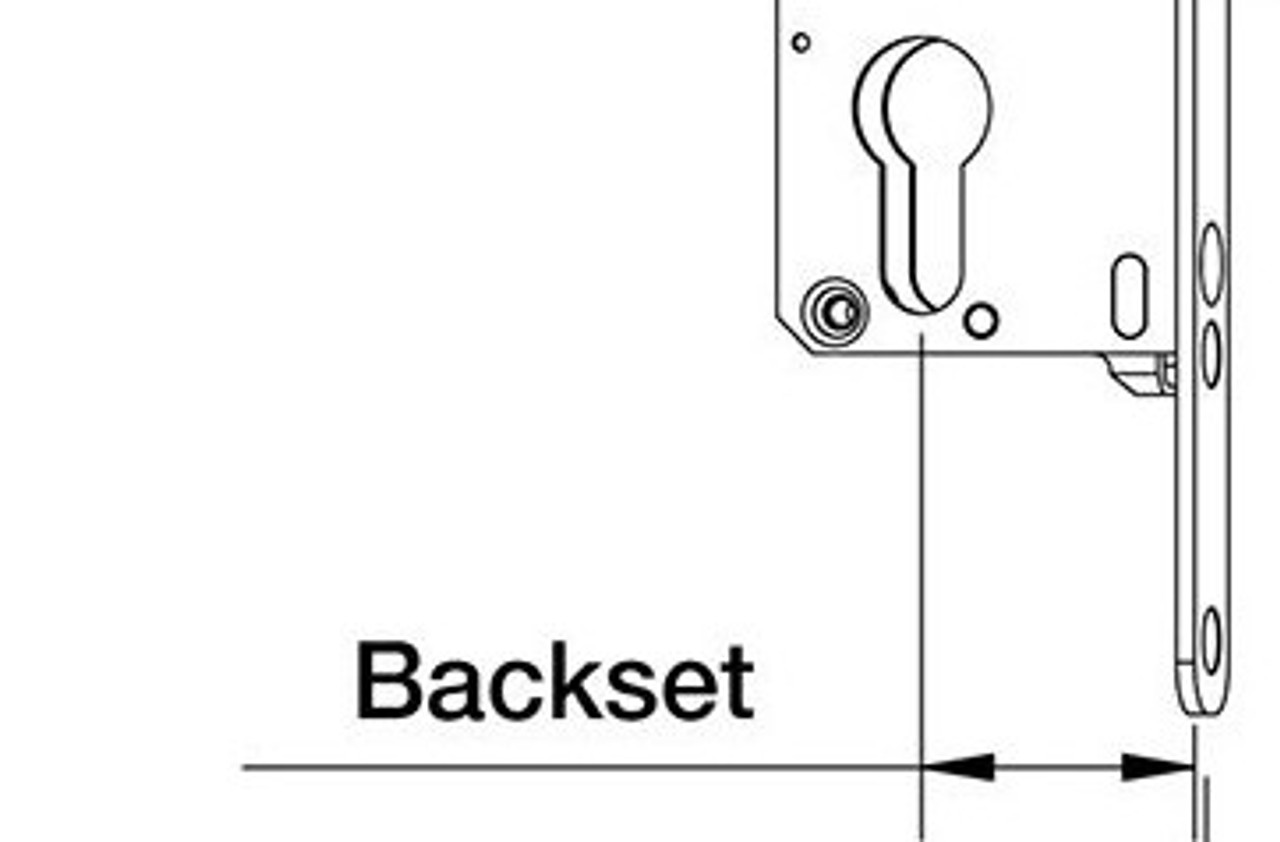

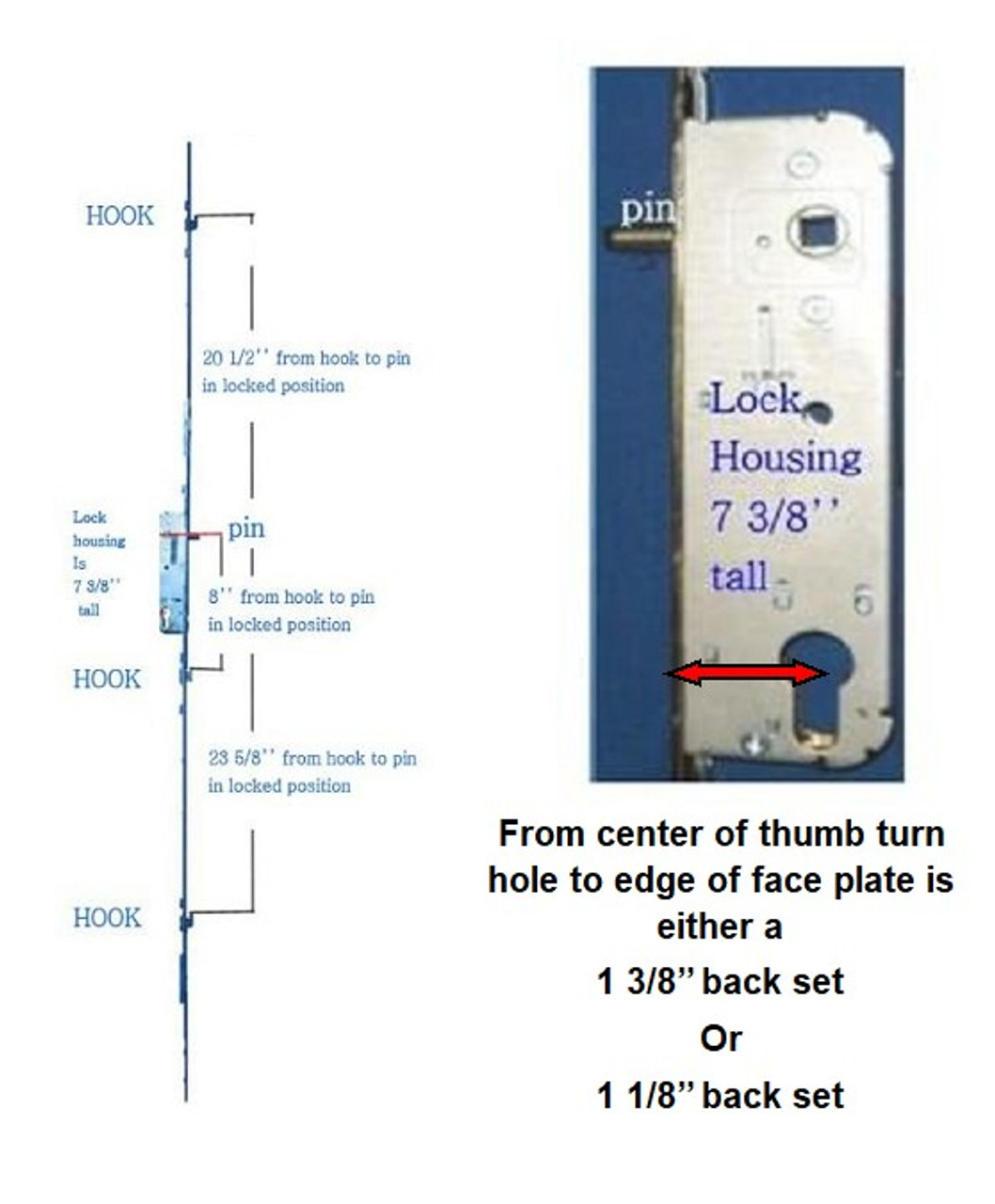

Back set: choose from either a 1-1/8'' (28mm) or an 1 3/8'' (35mm)
Handle PZ (spindle to center of key cylinder): 4-3/4 inches.
(Cylinder will not operate when in unlocked position)
Sticker on some locks: U2/ KOP or 11Z/ KOP
